01 / 05
Operator side and gear side, at once

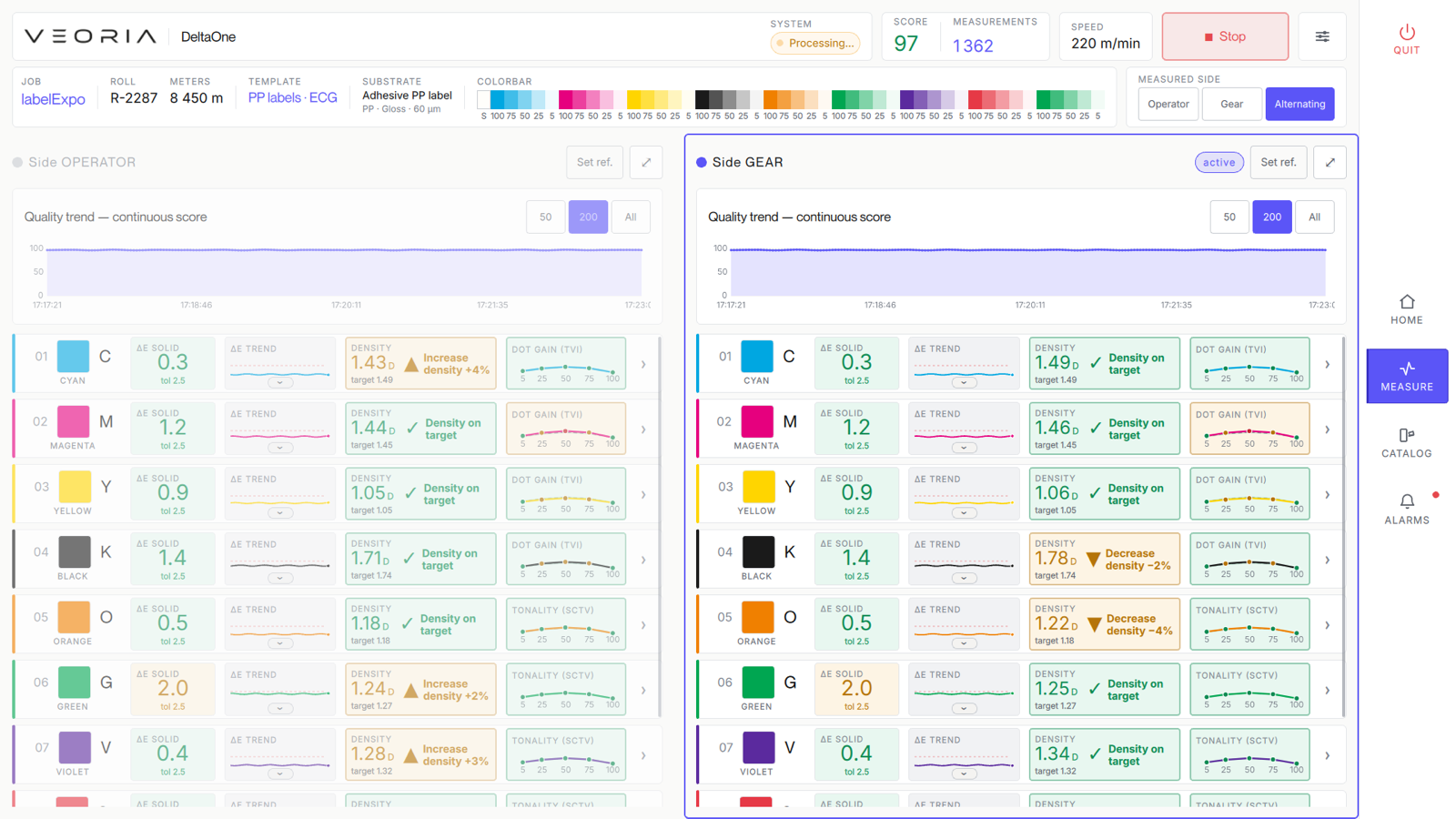

When the job carries a colorbar on both sides of the web, the screen splits — each side with its own measurement, so a cross-web difference is visible as soon as it appears.

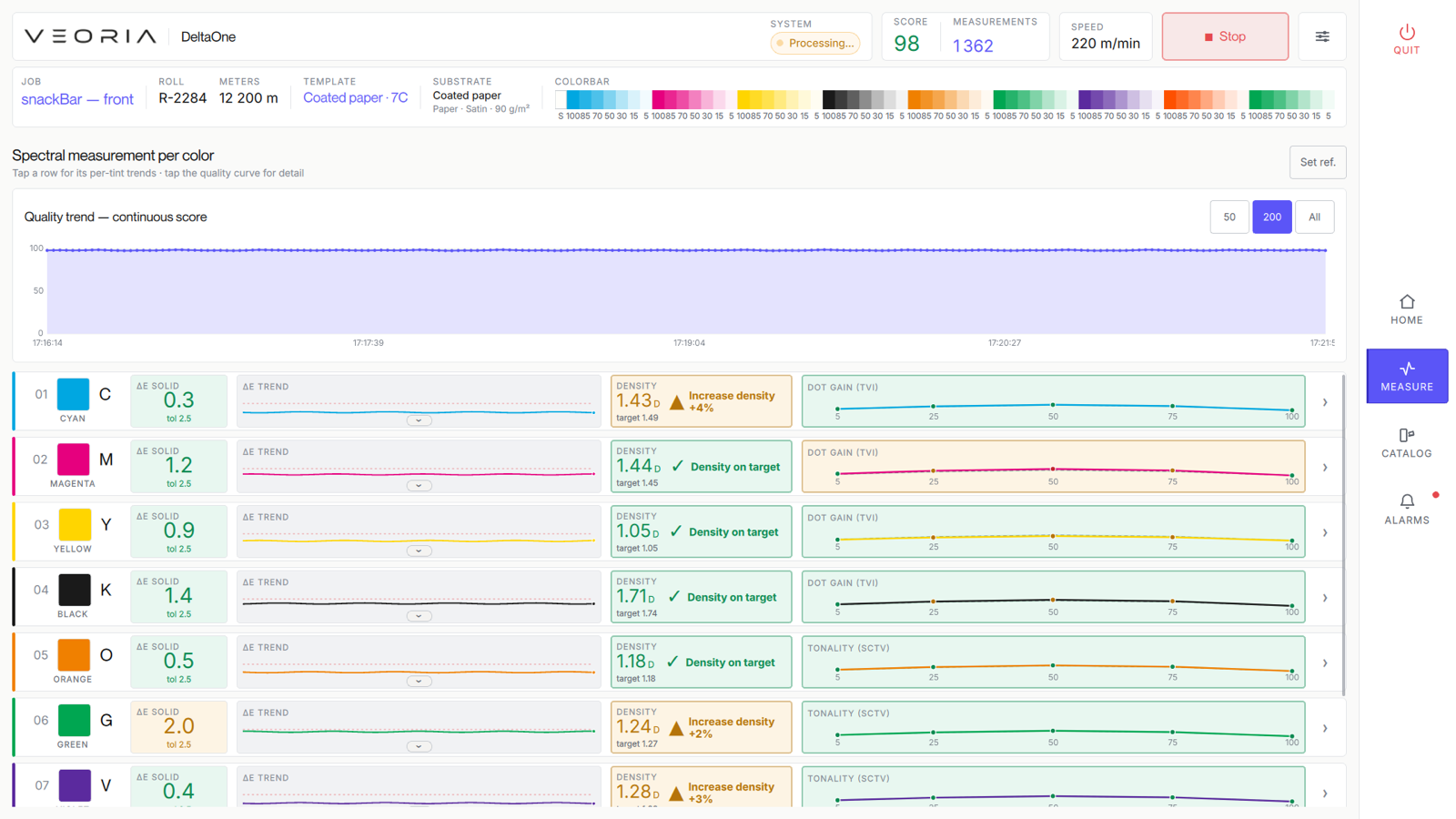

Inline spectral color control at production speed. DeltaOne continuously measures the running web, giving operators the color information they need without stopping the press — powered by Multispectral Imaging and Veoria's on-press software.
DeltaOne combines spectrophotometric accuracy, geometric verification, and automatic detection in a single inline system: stable, repeatable, and fast enough to keep up with your press. A calibrated illuminant, an optical zoom that frames each patch, a 36-band spectral read: from light to ΔE in real time.
A motorized head, up to two colorbars per job, and software that attributes every reading to its side of the web.
The scanner head is motorized and traverses the full width of the web. Wherever a job places its colorbar — gear side, operator side, or both — DeltaOne positions itself on it. The head follows the layout, not the other way around.

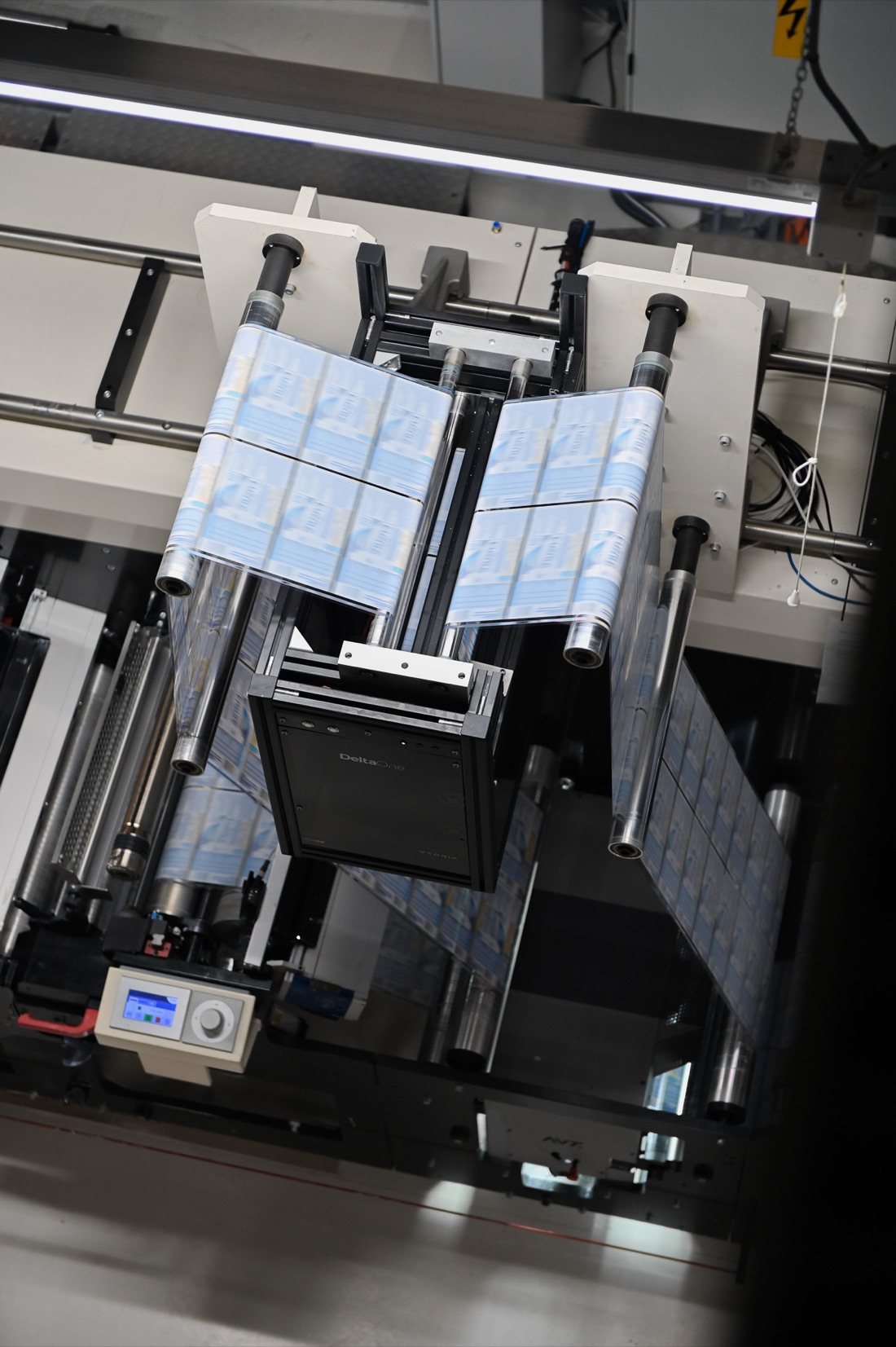

A job can carry a colorbar on each side of the web — DeltaOne measures both, alternating between them on the run. Every reading is tagged with its side, so the two edges of the web appear as two separate curves on screen.
Because every measurement is attributed to its colorbar, the software separates a press-wide drift from a local one. When both sides move together, the cause is likely the ink; when one side moves alone, it is likely local — impression, doctor blade, anilox. Comparing the two sides helps operators narrow down the source of a variation.

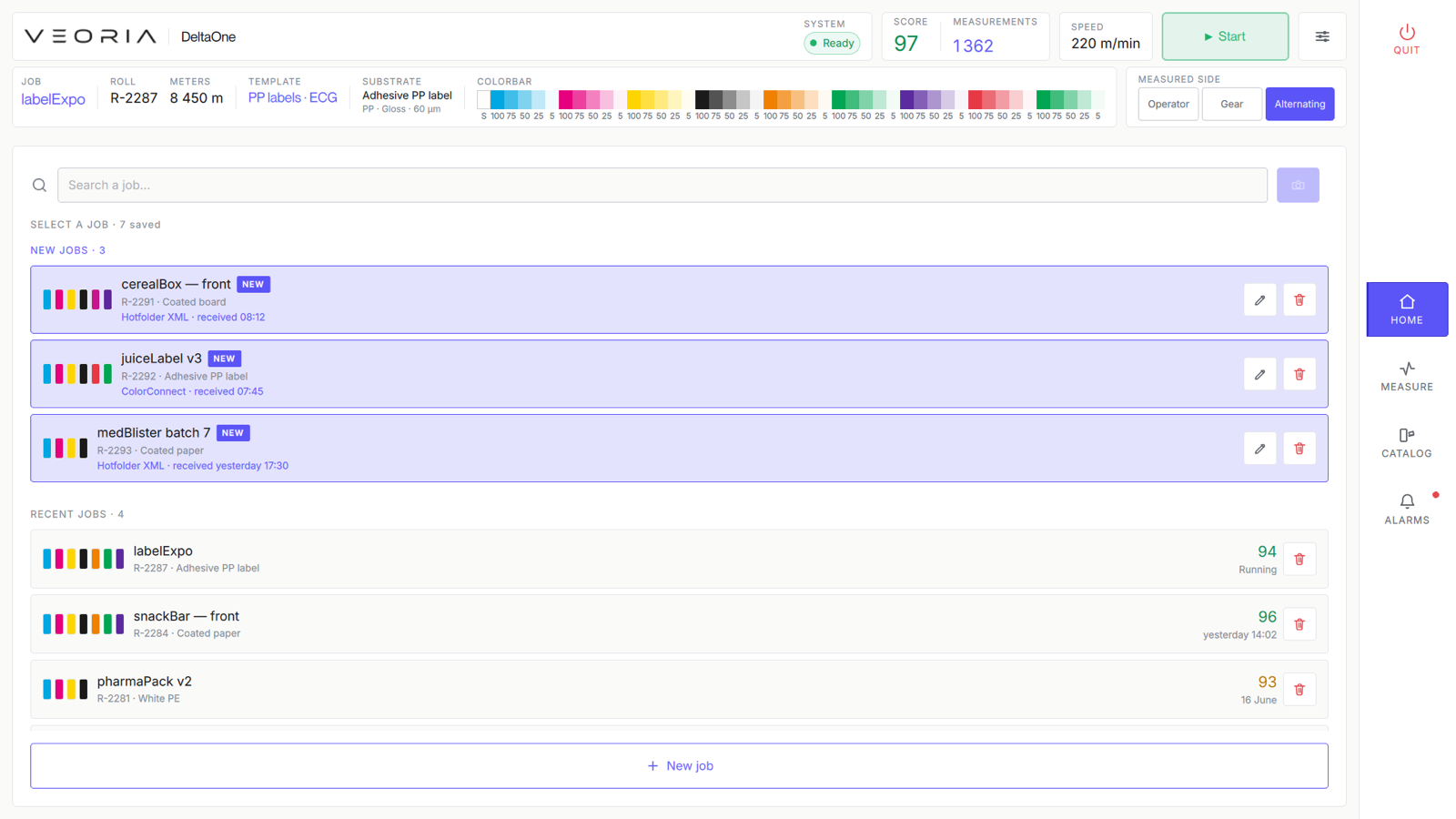

DeltaOne runs on Veoria's own on-press application. It turns continuous measurement into clear operator guidance.
Instrument Matching aligns DeltaOne with the reference instrument used in your pressroom — Techkon, X-Rite, or another compatible instrument. Maintain the quality standards you already work to, from handheld measurement to inline control.
The handheld on the color desk and DeltaOne on the press read against the same reference. Operators move between the two without translating numbers.
No dedicated DeltaOne library to create or maintain. The targets and tolerances you have are the ones it measures against.
DeltaOne fits into the setup your pressroom uses today — no parallel measurement workflow to maintain.
Available now for DeltaOne customers · Compatible with Techkon · X-Rite · NIX
Working with another instrument? Get in touch with our team to discuss compatibility.
One rule decides it: DeltaOne reads the colorbar along the running web, not across its width. That suits web-fed presses whose ink film is uniform across the web — presses without zonal ink keys.

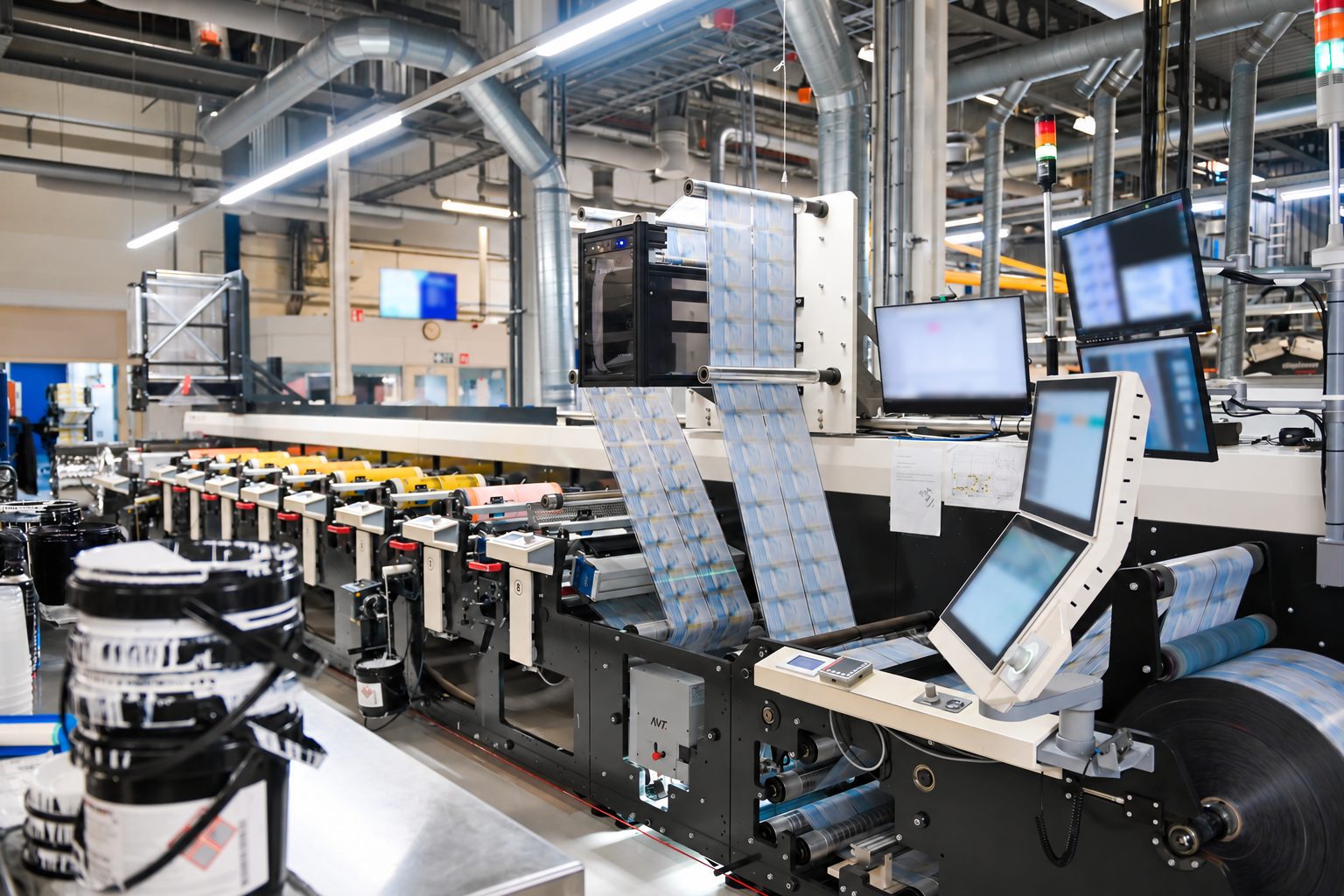

Anilox-metered by design, so ink is even across the web. The most common DeltaOne deployment. See the Eshuis case study for measured results.
Keyless offset, where an anilox roller meters the ink. Conventional offset with ink keys is not supported: correcting it needs a reading per key zone across the web, which a machine-direction measurement cannot provide.
No ink keys at all. Measure at full production speed on digital web presses, without slowing the imaging path.
Ink metered by cell volume, so again even across the web. Wide-web deployment for flexible packaging and decorative substrates, at the same 2 × 2 mm patch precision.
Web-fed only. DeltaOne measures on a running web; sheet-fed presses are outside its scope.
DeltaOne's data doesn't stay on the press. Export and connect to the tools your color team already trusts.
DeltaOne readings feed Production and Reports — run scoring, job history, customer reporting.
Measurements feed tracking and capability checks — instrument and process verification over time.
Every reading is stored as full spectra — any color system that reads spectral data can use them. No lock-in.

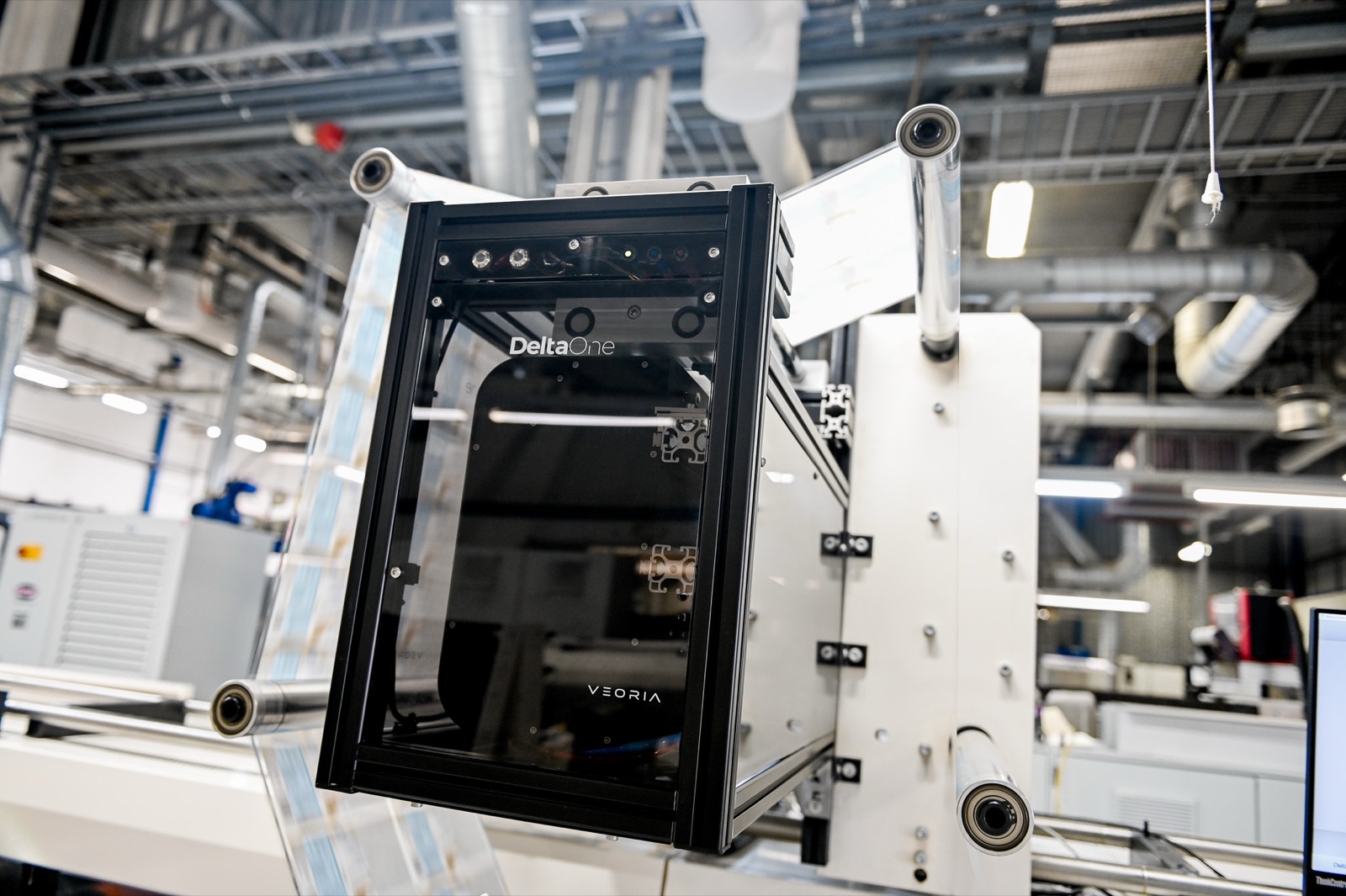

A 360 × 162 × 200 mm instrument that mounts inline without redesigning the press, with 50 mm of usable measurement width.
Optical zoom delivers exceptional image resolution: fine detail on patches, microtext, and registration marks alike.
DeltaOne evaluates patch size, shape, and registration on every read, ensuring every measurement it reports is consistent and trustworthy.
Full specifications, dimensions, on-press software and press compatibility. Two pages, printable and shareable.
DeltaOne reduced our press stops by 50% — color control turned from a reactive task into a continuous, automated process.
Substrate savings, time gained, CO₂ avoided, and net return after the annual software subscription — computed for your web width, speed, and job mix.
Open the ROI calculatorTell us about your setup — we'll come back with a 30-minute demo, tailored to your press type, web width, and color workflow.
Request a demo
